SurfEdit : Interactive Surface Editor

Edit a mesh with the mouse

The surface edition extension let you model a surface by grabbing its mesh points with the mouse or trackpad.

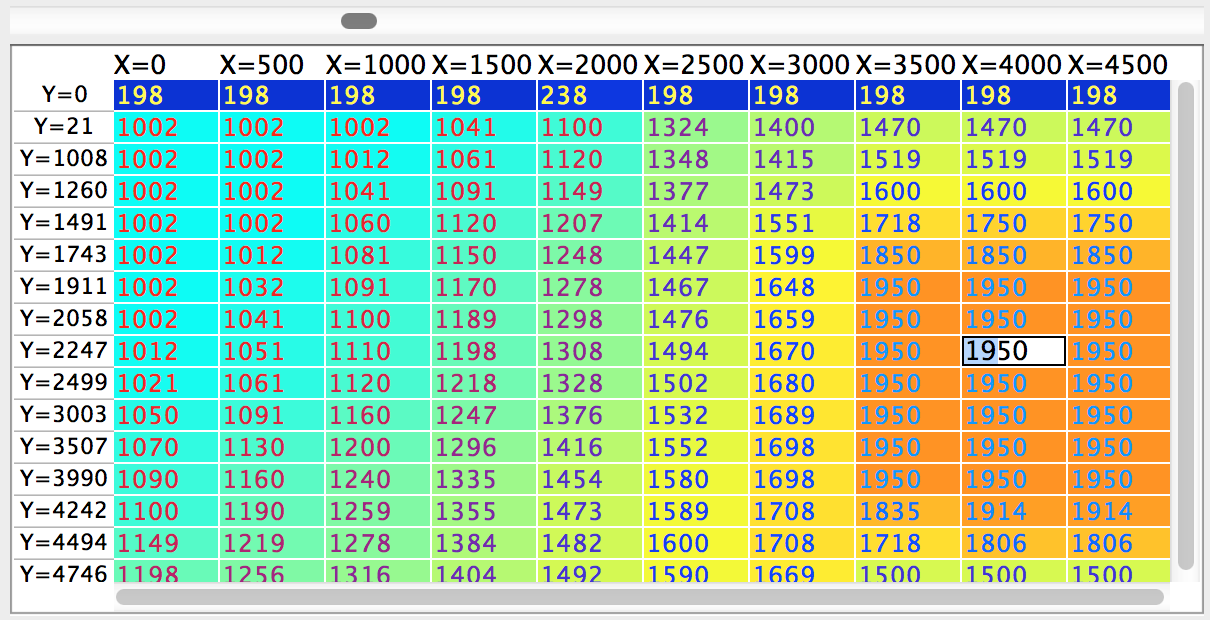

Z values of the surface are synchronized with a table.

Table cells can be modified to finely edit surface shape.

Download

Usage

Surface selection

+ =
+ + =
+ =

Surface edition

+ + =
+ =
+ =
scroll

Table edition

Top slider changes column width

Code


public void makeUI(MapData data, final float[] zticks, final float zmin, final float zmax) {
    // chart
    chart = InteractiveChartComponentFactory.chart(Quality.Intermediate, "awt");
    chart.openPrimarySurface(data, zmin, zmax, zticks);
    chart.getView().setBackgroundColor(Color.BLACK);
    chart.getAxeLayout().setMainColor(Color.WHITE);
    chart.getMouseController().setTooltipOn(true);
    chart.getMouseController().setSelectionMode(SelectionMode.NORMAL);
    chart.getMouseController().setUseShiftToMakeRectangle(true);

    // table
    table = new SurfEditTable();
    table.setDefaultRenderer(Object.class, new SurfEditTableRenderer(chart.getPrimarySurface(), layout));
    table.setModel(new SurfEditTableModel(data, layout));
    table.setAutoResizeMode(JTable.AUTO_RESIZE_OFF);

    scroll = new JScrollPane(table, JScrollPane.VERTICAL_SCROLLBAR_ALWAYS, JScrollPane.HORIZONTAL_SCROLLBAR_ALWAYS);
    scroll.setRowHeaderView(makeTableHeaders(layout));

    // table column resize
    int value = 60;
    int minScrollWidth = 15;
    int maxScrollWidth = 150;
    columnSizeSlider = ColumnSlider.build(table, value, minScrollWidth, maxScrollWidth);

    // html usage
    htmlPane = HTMLViewer.build(html(), css());

    makeLayout();

    SurfEditTableSync sync = null;
    if (sync != null)
        sync.unwire(); // don't forget, if you hold a sync
    sync = SurfEditTableSync.wire(chart, table);
}

public void makeLayout() {
    // Excel-like table with column width slider
    JPanel tablePanel = new JPanel();
    String linesP = "[20][300px, grow]";
    String columnsP = "[600px, grow]";
    tablePanel.setLayout(new MigLayout("insets 0", columnsP, linesP));
    tablePanel.add(columnSizeSlider, "cell 0 0, growx"); // column slider
    tablePanel.add(scroll, "cell 0 1, grow");


    // Bi-Panel layout : table and chart
    String lines = "[600px,grow]";
    String columns = "[600px,grow][600px,grow]";
    setLayout(new MigLayout("", columns, lines));
    add(tablePanel, "cell 0 0, grow");
    add((java.awt.Component) chart.getCanvas(), "cell 1 0, grow");
    ((java.awt.Component) chart.getCanvas()).setMinimumSize(new Dimension(0,0));
}
